The CP-ANW-HPU24G2F2-N30 is a high-capacity AI-equipped PoE network switch designed for large CCTV/IP camera deployments and robust network power/data delivery. It integrates 24 PoE ports, 2 Gigabit uplinks, and 2 SFP fiber uplinks for flexible backbone connectivity, making it ideal for enterprise-level surveillance networks and high-density installations. CP PLUS+1
🔌 Key Features
📡 PoE Support: 24 × 10/100 Mbps PoE ports delivering power and data over Ethernet.
💡 Uplink Ports: 2 × Gigabit RJ45 + 2 × Gigabit SFP ports for high-speed uplinks and fiber connectivity.
⚡ PoE Standards: Supports IEEE 802.3af/at/bt, compatible with standard PoE & PoE+ devices.
🔋 PoE Power Budget: ~300 W total, up to 60 W per high-power port.

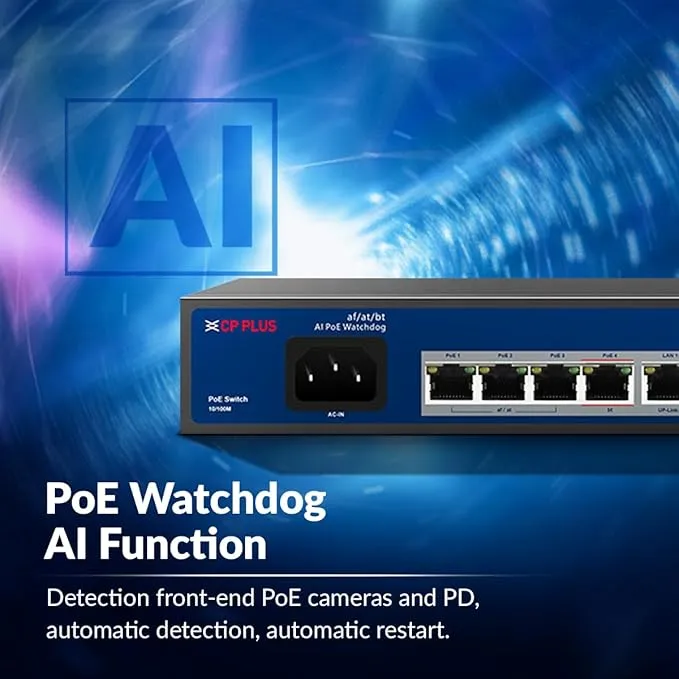

🤖 AI PoE Watchdog: Automatically detects and restarts unresponsive PoE devices to maintain uptime.
⛅ Protection: 6 kV lightning & 8 kV ESD protection, over-current/voltage and short-circuit safeguards.
📊 Performance: 12.8 Gbps switching capacity with ultra-low latency and wide network support.
📐 Transmission Distance: Up to 250 m over Cat5/5e cable on FE ports.
🛠️ Plug-and-Play: Unmanaged design for easy deployment without configuration.
