The CP-ANW-HPU8H2-N12 is an 8-port PoE network switch with 2 uplink ports designed to power and connect multiple IP cameras and other PoE devices through a single Ethernet cable per device — eliminating separate power adapters and simplifying installation.
📶 Key Features
Ports: 8 × PoE + 2 × uplink (LAN) RJ45 ports for flexible network expansion.
PoE Standards: Compatible with IEEE 802.3af/at/bt, suitable for most modern IP cameras and PoE devices.
High Power Support: PoE ports 7 & 8 support bt 60 W high power output for high-draw devices.
PoE Power Budget: 120 W total, allowing multiple PoE devices to be powered simultaneously over Ethernet.

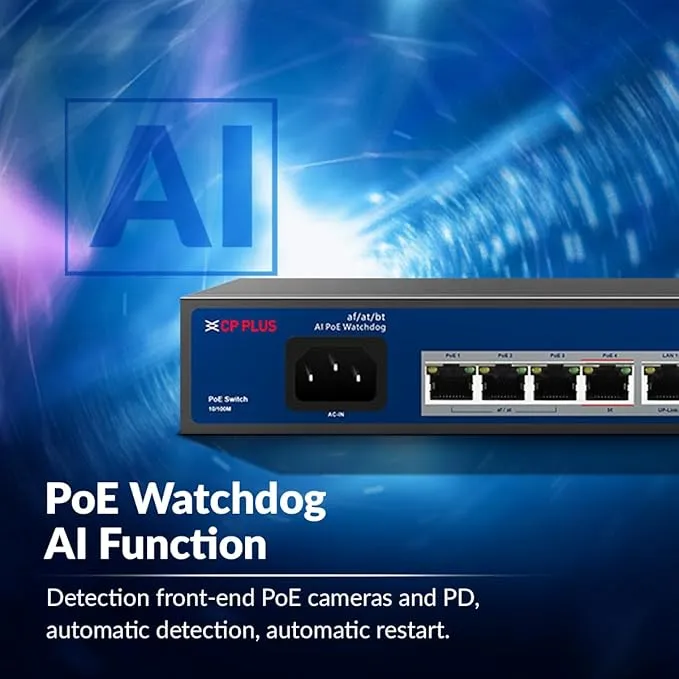

PoE Watchdog: Intelligent watchdog function monitors PoE devices and auto-restarts unresponsive devices.
Protection: 6 kV lightning & 8 kV surge protection safeguards the switch and connected devices.
Performance: Operates with 200 Mbps full-duplex data transfer and a 2.0 Gbps bandwidth for stable network throughput.
Distance Support: Transmission up to 250 m on ports 1–2 and 130 m on ports 3–8.
Build: Compact and sturdy switch suitable for CCTV installations in homes, offices, and shops.
